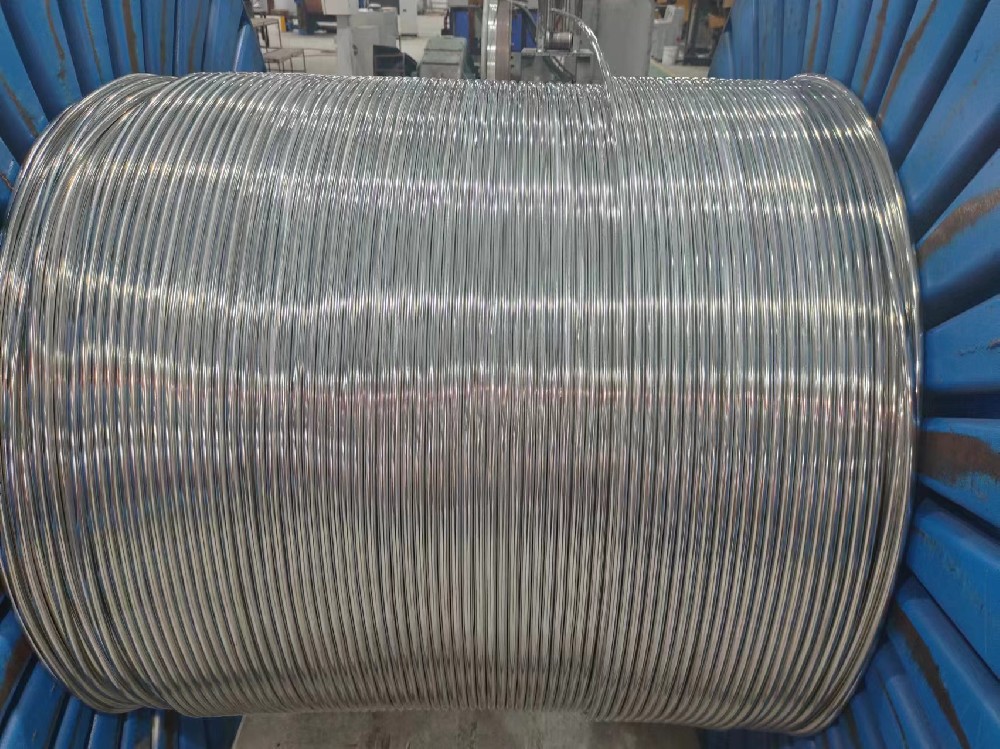

Tinned Copper Clad Steel Round Wire
Electrolytic copper is electroplated on the round steel in the form of molecular bonding. The thickness of the copper plating layer is more than 0.25mm. The tin plating layer is electroplated on the periphery of the copper layer to enhance the anti-corrosion performance of the material in any acidic or alkaline soil and can effectively reduce the risk of theft.
Model Number | Diameter(mm) | Copper thickness(mm) | Linear type of packing(pcs) | Shaft type of packing(roll) | Diameter error(mm) |
CCSCC30-Φ8 | 8 | 0.254/0.3/0.8 | 6m | 100m | ±0.08 |
CCSCC30-Φ10 | 10 | 0.254/0.3/0.8 | 6m | 100m | ±0.08 |
CCSCC30-Φ12 | 12 | 0.254/0.3/0.8 | 6m | 100m | ±0.1 |
CCSCC30-Φ14 | 14 | 0.254/0.3/0.8 | 6m | 100m | ±0.1 |
CCSCC30-Φ16 | 16 | 0.254/0.3/0.8 | 6m | 100m | ±0.1 |
CCSCC30-Φ18 | 18 | 0.254/0.3/0.8 | 6m | 100m | ±0.1 |
CCSCC40-Φ8 | 8 | 0.254/0.3/0.8 | 6m | 100m | ±0.08 |
CCSCC40-Φ10 | 10 | 0.254/0.3/0.8 | 6m | 100m | ±0.08 |
CCSCC40-Φ12 | 12 | 0.254/0.3/0.8 | 6m | 100m | ±0.1 |
CCSCC40-Φ14 | 14 | 0.254/0.3/0.8 | 6m | 100m | ±0.1 |
CCSCC40-Φ16 | 16 | 0.254/0.3/0.8 | 6m | 100m | ±0.1 |
CCSCC40-Φ18 | 18 | 0.254/0.3/0.8 | 6m | 100m | ±0.1 |
The above are the conventional models. Other customizable copper layer thicknesses are 0.25mm/0.55mm/1.0mm. If you need other specifications and copper layer thicknesses, please contact the Xinhesheng distributors or come to the factory headquarters to learn more about our products and services.
